PL-O-055

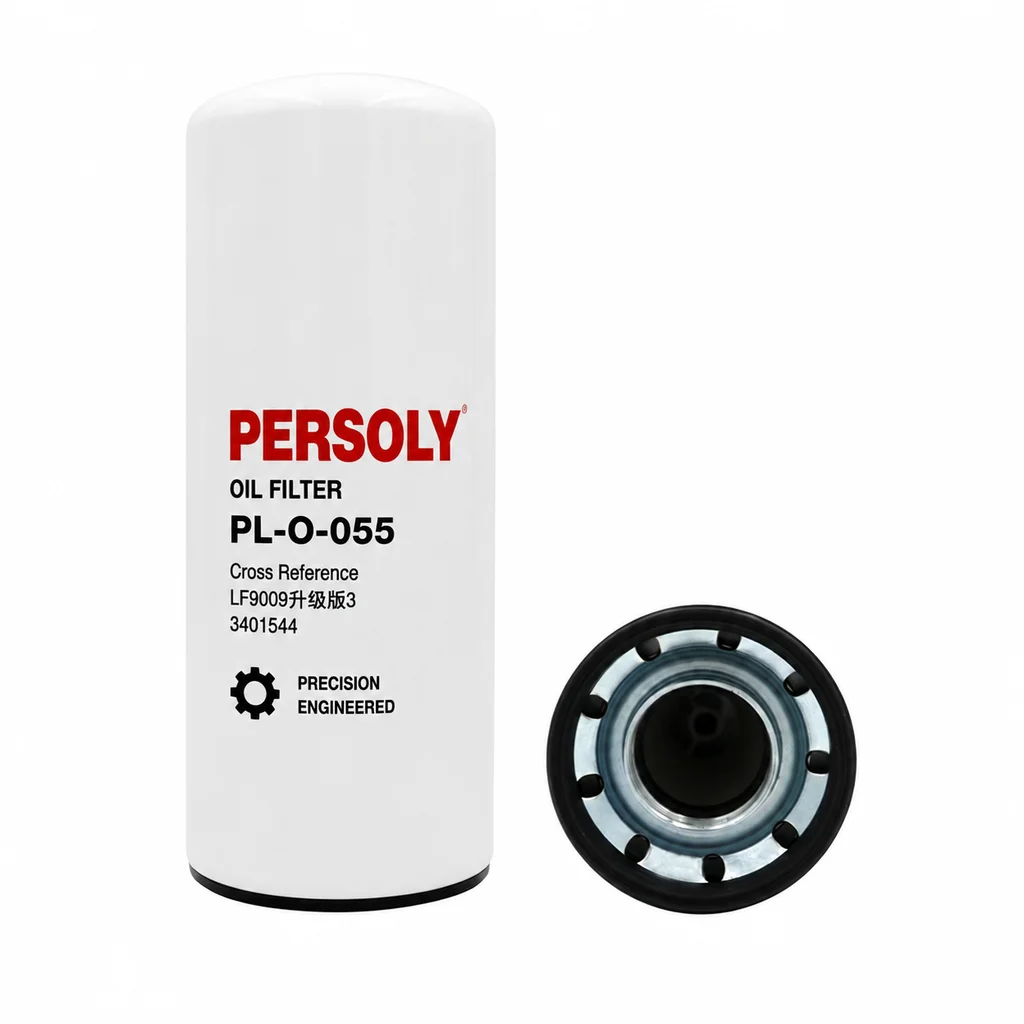

PERSOLY Oil Filter PL-O-055

Request product information

Add this model to your inquiry. No order is placed from this page.

Ask about this product on WhatsApp

Product specifications

PERSOLY model: PL-O-055
Size: Φ119*299
Thread: 2-1/4"-12

REFERENCE MATCHING

Cross-references

LF9009升级版3(弗列加)
CUMMINS 3401544
JLX-350(平原)
DONALDSON P553000
BALDWIN BD7309
KOMATSU 6142-01-4540
53C0053(柳工)
5293645
CUMMINS C5442113

FITMENT DATAApplications and engine references

Applications

Cummins midrange and heavy-duty engines, including: Cummins ISC / QSC 8.3L (1998-2007) Cummins ISL / ISL9 / L9 / QSL9 8.9L (1998-present, including L9 2020+ where Fleetguard supersedes to LF14002NN) Cummins M11 / ISM 11.0L (1995-2010) Cummins N14 14.0L (1988-2004) Representative trucks and equipment using these engines: Freightliner M2, Business Class with ISC/ISL/L9 (1998-present) Peterbilt 337, 348 with ISL/L9 (selected years) Kenworth T370, T270, T440 with ISL/L9 (selected years) International / Sterling medium-duty with ISC/ISL (selected years) Cummins-powered Case IH, New Holland, John Deere, Komatsu off-highway equipment The XD suffix denotes the extended-drain (microglass media) version. For applications requiring the Vamac extreme-temperature gasket, use WIX WL10041 instead. Verify the engine/filter housing combination and the OEM-specified service interval before ordering.

Engine references

Cummins ISC 8.3L, ISL / ISL9 / L9 8.9L, ISM / M11, N14 Thread Size 2 1/4 in.-12 Height 11.364 in. (289 mm) Outer Diameter (Top) 4.668 in. (119 mm) Bottom Configuration Closed By-Pass Valve None (filtered upstream) Nominal Micron Rating 35 Beta Ratio 2/20/75 = 5/27/37 Burst Pressure 500 PSI Max Flow Rate 28 GPM Principle Application Extended Drain version of WIX 51748 (for Vamac extreme-temperature gasket, see WL10041)
