PERSOLY 燃油滤清器
燃油滤清器
PL-F-144

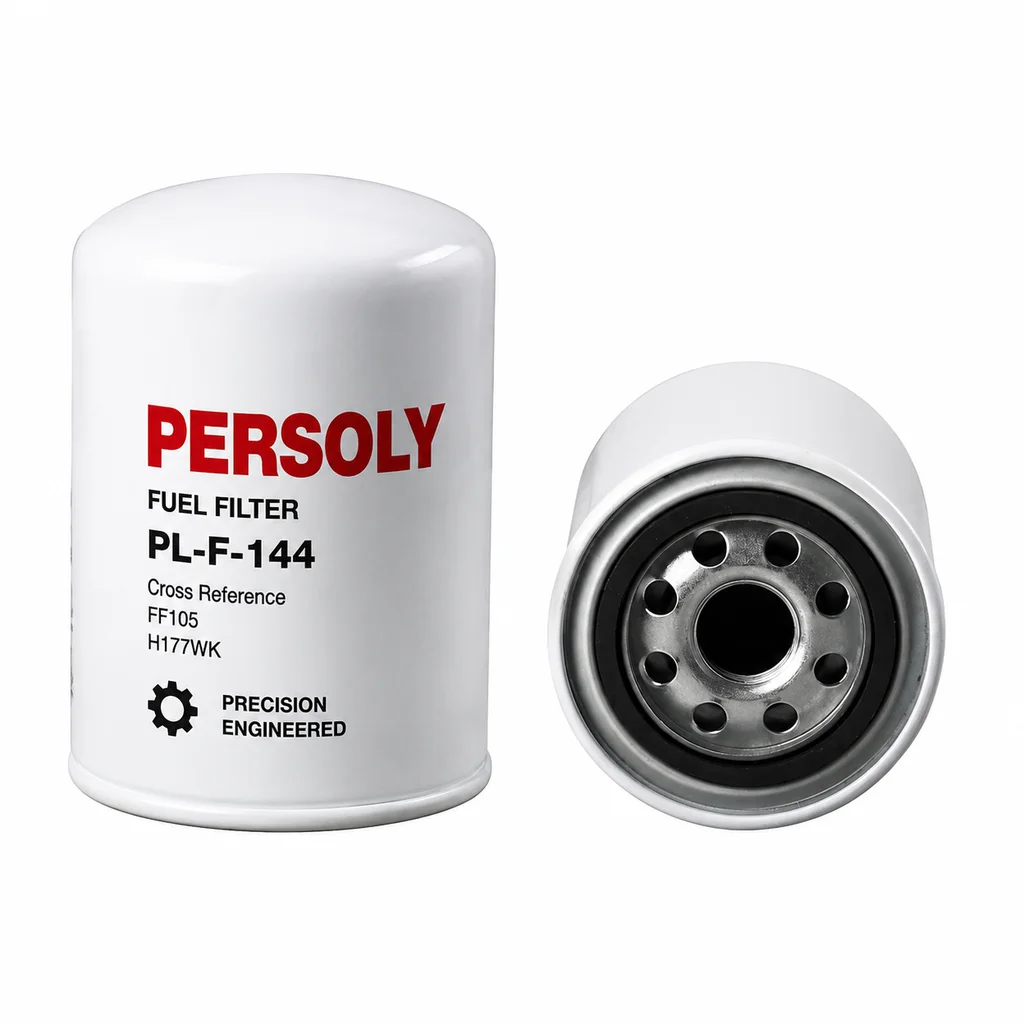

PERSOLY 燃油滤清器 PL-F-144
咨询产品信息将此型号加入询价。本页面不接受订单。
通过 WhatsApp 咨询此产品产品规格
- PERSOLY 型号
- PL-F-144
- 尺寸
- Φ93*136
- 螺纹
- 1-14
参考编号匹配
交叉参考编号
- FF105
- H177WK
- WK
- 950/3
- BF5801
- P8043
- P550105
- BF957
适配数据应用与发动机参考信息
应用信息
This fuel filter fits the following Cummins engines: Cummins NT855 / N855 (Big Cam, Big Cam III/IV) Cummins N14 mechanical (pre-Celect) Cummins KT19, KTA19, QSK19 Cummins N135 agricultural Representative equipment using these engines: On-highway trucks: Peterbilt, Kenworth, Freightliner, International, and Ford with NT855 / N14 mechanical (1980s–mid 1990s) Off-highway: Cummins-powered ag tractors, generator sets, and industrial power units Supersession path: FF104 → FF105 → FF5332 (synthetic media). Use FF105 for OEM-spec service. For drain-equipped variants, see Fleetguard FF105D. Confirm engine series and filter mount style before ordering. The FF105 covers mechanical Cummins fuel systems — later electronic Cummins engines (ISB, ISC, ISL, ISM, ISX) use different fuel filters and are not interchangeable.
发动机参考信息
Cummins NT855, N14 (mechanical), KT19, KTA19, QSK19; select N135 ag Filter Media NanoNet (cellulose with synthetic top layer) Efficiency 96% TWA per SAE J1858 / J1985 Micron Rating 20 µm per SAE J1858 / J1985 Thread Size 1-14 UNS-2B Overall Height 5.41 in (137.41 mm) Largest Outside Diameter 3.67 in (93.22 mm) Gasket Outside Diameter 2.83 in (71.88 mm) Gasket Inside Diameter 2.46 in (62.48 mm) Standpipe No Supersedes FF104
