PERSOLY 燃油滤清器
燃油滤清器
PL-F-017

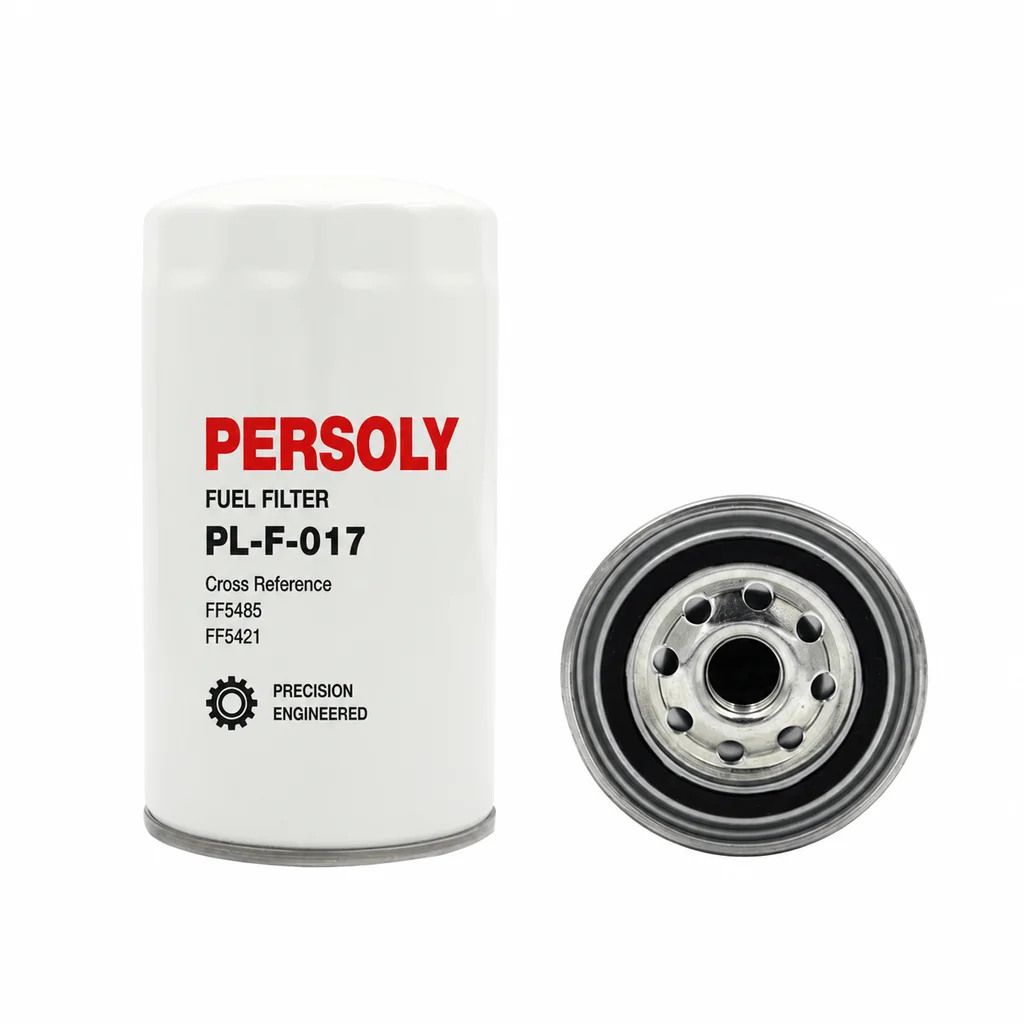

PERSOLY 燃油滤清器 PL-F-017
咨询产品信息将此型号加入询价。本页面不接受订单。
通过 WhatsApp 咨询此产品产品规格
- PERSOLY 型号
- PL-F-017
- 尺寸
- Φ94.5*173
- 螺纹
- M20x1.5-6H
参考编号匹配
交叉参考编号
- FLEETGUARD FF5485
- FLEETGUARD FF5421
- FLEETGUARD FF5420
- BALDWIN BF7813
- 33654
- DONALDSON P550881
- CUMMINS 4897833
- WEICHAI 612600081334
- FLEETGUARD FF5612
- CX0815E(蚌埠金威)
- SHANGCHAI D638-002-40
- TF-8918(豹王)
- CLX-251(平原)
- 1025BF11-020(东风件号)
- UC-5920(环球)
- 2000111(达菲特)
- F0081(威尔)
- WAL5485(威尔)
- C4989106
- (康明斯)
- 11LG-70010
- (现代)
适配数据应用与发动机参考信息
应用信息
This fuel filter fits the following engines: Cummins NT-855 — 14.0L (mechanical, on-highway and industrial) Cummins NT310 — 14.0L industrial Cummins V504 series industrial / agricultural Representative equipment using these engines: Case Construction loaders, dozers, and excavators with NT-855 / V504 engines Stationary power units, generator sets, and industrial drives with mechanical Cummins fuel systems Agricultural and marine pleasure-craft applications fitted with the Wix 24006 / FF5012 spin-on housing Verify your fuel filter housing thread (1-12 UNF) and gasket OD before ordering — Cummins's electronic fuel-system filters (e.g., FF5485 / FF5762) are not interchangeable with the FF5012.
发动机参考信息
Cummins NT-855, NT310, V504, plus other industrial / agricultural diesels Length 5.42 in (137.67 mm) Largest OD 3.67 in (93.22 mm) Seam OD 3.69 in (93.73 mm) Gasket ID / OD 2.46 in / 2.83 in Thread Size 1-12 UNF-2B Micron Rating 20 µm (SAE J1858 / J1985) Efficiency (TWA) 0.97 Standpipe No
